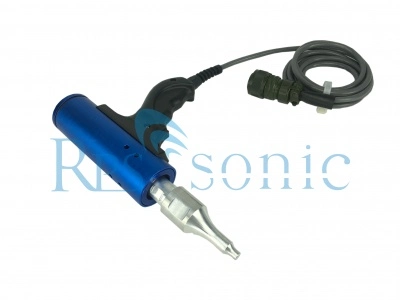

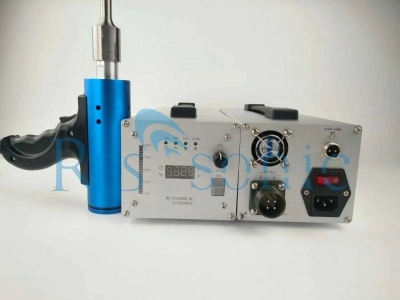

28kHZ Ultrasonic Welding Guns For Fabric PP Woven Sack Welders
Descripersion
Ultrasonic hand welder offers a low cost solution for parts where automation is not viable or production volumes are low. Application areas include spot-welding, staking of components, access to difficult weld areas and second operations/re-work.
The design and lightness of the manual pistol handgrip have been carefully delineated in order to assure a practical and comfortable handling when in use.
Ultrasonic welding guns are used to weld thermoplastic, where areas of welding are hard to reach the parts are too bigger to weld.
- Pistol type & straight staple type guns available
- Easy grip guns available with less diameter
- High quality connectors used to lessen loose connections
- Available in two frequencies :
- 20khz & 35khz.
Parameter:
| Item | 20 | 28 | 35 | 40 |
| Frequency | 20Khz | 28khz | 35khz | 40khz |
| Power | 800w | 600w | 500w | 300w |
| Horn tip diameter | 12mm | 10mm | 8mm | 8mm |
| Horn material | Aluminum alloy&Steel & Titanium alloy | |||
| Generator | Digital generator | |||
Ultrasonic welding is a widely recognized and accepted process for joining thermoplastic materials. It offers many advantages, including process reliability and repeatability, lower energy usage than other joining techniques, material savings (because there is no need for consumables, such as glue or mechanical fasteners), and labor savings.
But as with any process, there are situations where apparent problems with this technique may interrupt the production process. The key to resolving and avoiding these problems is to understand their likely origins. Processors that are successful in using ultrasonic welding typically share two principal traits: they have a well-documented, validated welding process; and that process is supported and maintained by a resident well-trained "champion." If one or both of these important factors are not present, you'll likely very soon call for help. Even with both present, it is possible that you'll need some help or technical assistance at least once in a while.
Areas of use:
Automotive industry
Prototype/trials work
Conveyor belt repair
Re-work for automation
Fabric repairs and joining
Blister packs
Vac forming- component retaining
Equipment is mobile
Our hand-held thermoplastic welding tools meet two needs: welding of hard-to-reach areas and tamper-proof sealing of packaging.
In practically no time your production teams will be producing clean welds with our ultrasonic gun and pencil.
These tools are designed for ease of use, adaptability and flexibility to ensure clean and strong welds.
We have the solution to all your assembly needs.
We also have metal housing welding pencil, for welsing machine assembly.
